What is the most-visited paid monument of the world?

Eiffel Tower: A Bewitching Inception, Where Art And Engineering Converge!

  • Author : Spenowr
  • Category : Art
RATING NOT AVAILABLE

You might have seen many explicitly created monuments, which commemorate a person or event, or which has become relevant to a social group as a part of their remembrance of historic times or cultural heritage, due to its artistic, historical, political, technical or architectural importance. But trust me stick with me till the end of this article and you will get every aspect of a monument what you will get nowhere else, after all this is why this monument is the most visited paid monument of the world!



Eiffel Tower at a Glance

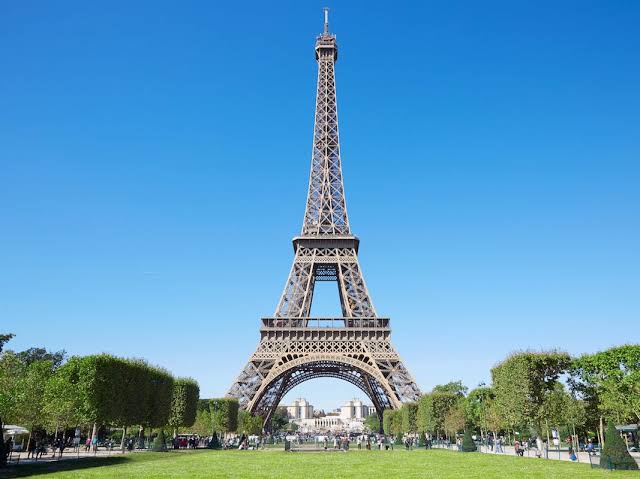

 Image result for eiffel tower"

If you had a visit you might have a rough idea how big this structure is but people who had a view over photo and video will get a horripilation by getting to know the actual size of the humongous structure. Guess what? Having a square base of 125 metres (410 ft) wide on each side and a height of 324 metres (1063 ft), Eiffel Tower is the tallest structure of Paris. Can you believe on this numbers?  The tower has three levels for visitors, with restaurants on the first and second levels. The top level’s upper platform is 276m (906 Ft) above the ground-the highest observation deck accessible to the public in the European Union. Tickets can be purchased to ascend by stairs or lift to the first and second levels. The climb from ground level to the first level is over 300 steps, as is the climb from the first level to the second. Although there is a staircase to the top level, it is usually accessible only by lift.

Image result for eiffel tower"

         Eiffel openly acknowledged that inspiration for a tower came from the Latting Observatory built in New York City in 1853. In May 1884, working at home, Koechlin made a sketch of their idea, described by him as "a great pylon, consisting of four lattice girders standing apart at the base and coming together at the top, joined together by metal trusses at regular intervals".



History

 Origin

The design of the Eiffel Tower is attributed to Maurice Koechlin and Émile Nouguier, two senior engineers working for the  Eiffel. It was envisioned after discussion about a suitable centrepiece for the proposed universally, a world's fair to celebrate the centennial of the French Revolution. Eiffel initially showed little enthusiasm, but he did approve further study, and the two engineers then asked Stephen Sauvestre, the head of company's architectural department, to contribute to the design. Sauvestre added decorative arches to the base of the tower, a glass pavilion to the first level, and other embellishments.

Image result for eiffel tower history"

        The new version gained Eiffel’s support, he brought the rights to the patent on the design and exhibited at the Exhibition of Decorative Arts in the autumn of 1884 under the company name. On 30 March 1885, Eiffel presented his plans to the Society of Ingenious Civils; after discussing the technical problems and emphasizing the practical uses of the tower, he finished his talk by saying the tower would symbolize not only the art of the modern engineer, but also the century of Industrand Science in which we are living, and for which the way was prepared by the great scientific movement of the eighteenth century and by the Revolution of 1789, to which this monument will be built as an expression of France's gratitude.

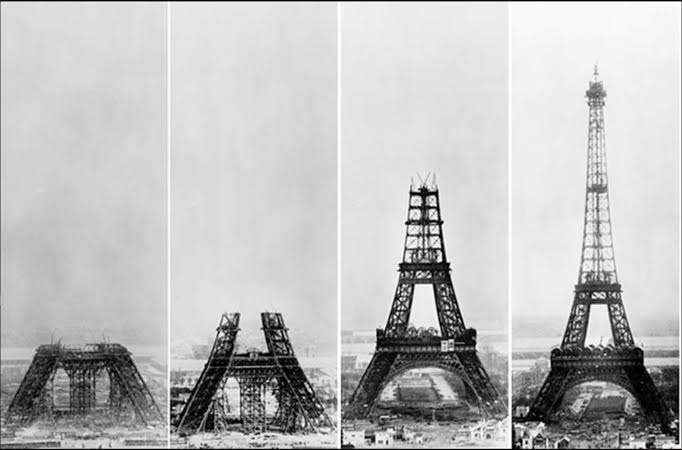

Image result for eiffel tower history"

          After a lot of Hurdles finally on 12 May 1886, a commission was set up to examine Eiffel's scheme and its rivals, which, a month later, decided that all the proposals except Eiffel's were either impractical or lacking in details.After some debate about the exact location of the tower, a contract was signed on 8 January 1887. This was signed by Eiffel acting in his own capacity rather than as the representative of his company, and granted him 1.5 million francs toward the construction costs: less than a quarter of the estimated 6.5 million francs. Eiffel was to receive all income from the commercial exploitation of the tower during the exhibition and for the next 20 years. He later established a separate company to manage the tower, putting up half the necessary capital himself.



Construction

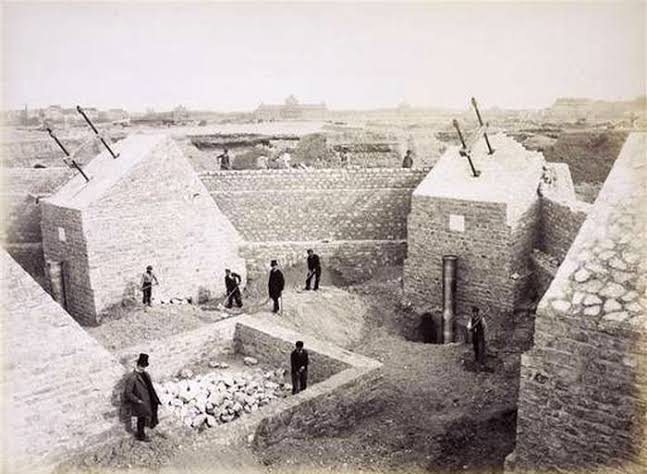

       Foundation work started on 28th January 1887. For east and south legs are straight forward and each leg resting on four 2m, one for each of the principal girders of each leg. The west and north legs, being closer to the river Seine, were more complicated: each slab needed two piles installed by using compressed-air caissons 15 m (49 ft) long and 6 m (20 ft) in diameter driven to a depth of 22 m (72 ft)[16] to support the concrete slabs, which were 6 m (20 ft) thick. Each of these slabs supported a block of limestone with an inclined top to bear a supporting shoe for the ironwork.

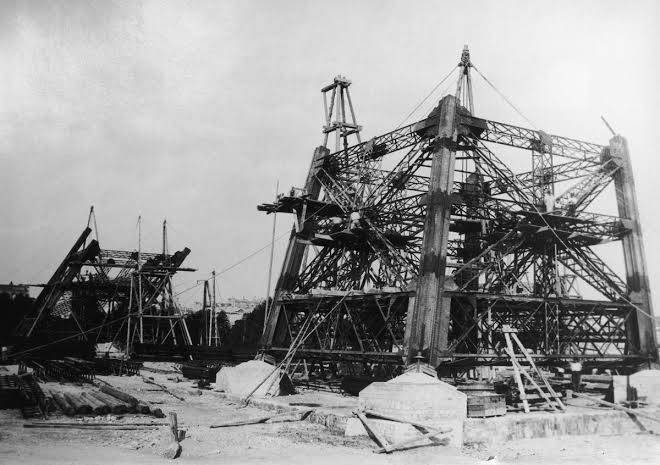

Image result for construction of eiffel tower"

Each shoe was anchored to the stonework by a pair of bolts 10 cm (4 in) in diameter and 7.5 m (25 ft) long. The foundations were completed on 30 June, and the erection of the ironwork began. The visible work on-site was complemented by the enormous amount of exacting preparatory work that took place behind the scenes: the drawing office produced 1,700 general drawings and 3,629 detailed drawings of the 18,038 different parts needed. The task of drawing the components was complicated by the complex angles involved in the design and the degree of precision required: the position of rivet holes was specified to within 1 mm (0.04 in) and angles worked out to one second of arc.

Image result for construction of eiffel tower"

The finished components, some already riveted together into sub-assemblies, arrived on horse-drawn carts from a factory in the nearby Parisian suburb of Levallois-Perret and were first bolted together, with the bolts being replaced with rivets as construction progressed. No drilling or shaping was done on site: if any part did not fit, it was sent back to the factory for alteration. In all, 18,038 pieces were joined together using 2.5 million rivets.



Lifts

 Equipping the tower with adequate and safe passenger lifts was a major concern of the government commission overseeing the Exposition. Although some visitors could be expected to climb to the first level, or even the second, lifts clearly had to be the main means of ascent.

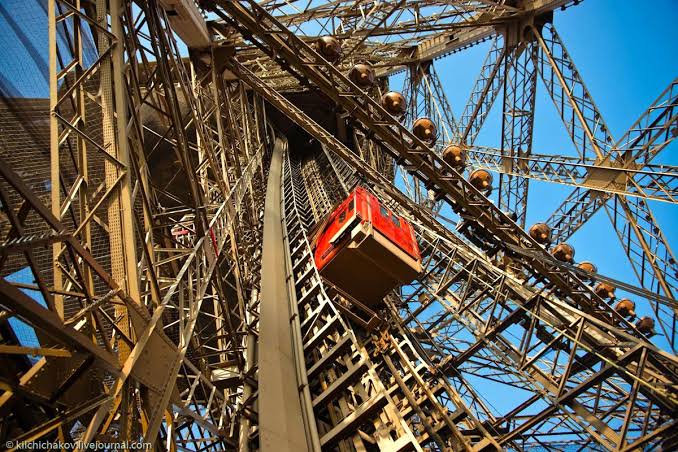

Image result for lift of eiffel tower"

Constructing lifts to reach the first level was relatively straightforward: the legs were wide enough at the bottom and so nearly straight that they could contain a straight track.Installing lifts to the second level was more of a challenge because a straight track was impossible. No French company wanted to undertake the work. The European branch of Otis Brothers & Company submitted a proposal but this was rejected. But later as no French company was ready to fill a conract or to pull the job, finally Otis Brothers & Company Got the contract in july 1887 and pulled the job.

Image result for lift of eiffel tower"

The original lifts for the journey between the second and third levels were supplied by Léon Edoux. A pair of 81 m (266 ft) hydraulic rams were mounted on the second level, reaching nearly halfway up to the third level. One lift car was mounted on top of these rams: cables ran from the top of this car up to sheaves on the third level and back down to a second car. Each car only travelled half the distance between the second and third levels and passengers were required to change lifts halfway by means of a short gangway. The 10-ton cars each held 65 passengers.

Concerns for Improvising External Beauty

The tower is painted in three shades: lighter at the top, getting progressively darker towards the bottom to complement the Parisian sky. It was originally reddish brown; this changed in 1968 to a bronze colour known as "Eiffel Tower Brown". The only non-structural elements are the four decorative grill-work arches, added in Sauvestre's sketches, which served to make the tower look more substantial and to make a more impressive entrance to the exposition.

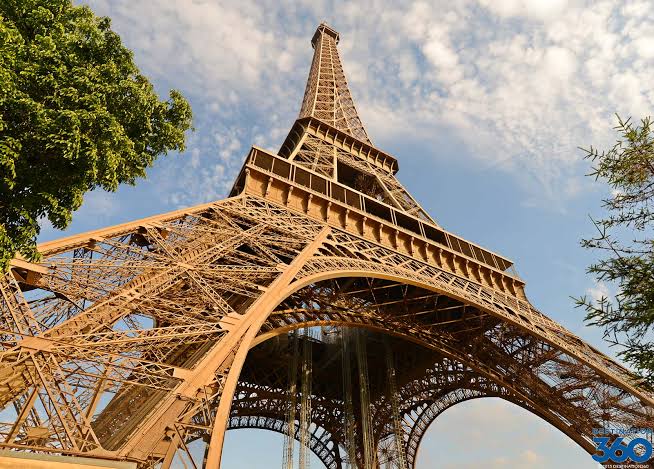

Image result for eiffel tower frame work"

A pop-culture movie cliche is that the view from a Parisian window always includes the tower. In reality, since zoning restrictions limit the height of most buildings in Paris to seven storeys, only a small number of tall buildings have a clear view of the tower.

                                                                     Image result for eiffel tower frame work"

More than 250 million people have visited the tower since it was completed in 1889. In 2015, there were 6.91 million visitors. The tower is the most-visited paid monument in the world. An average of 25,000 people ascend the tower every day.
